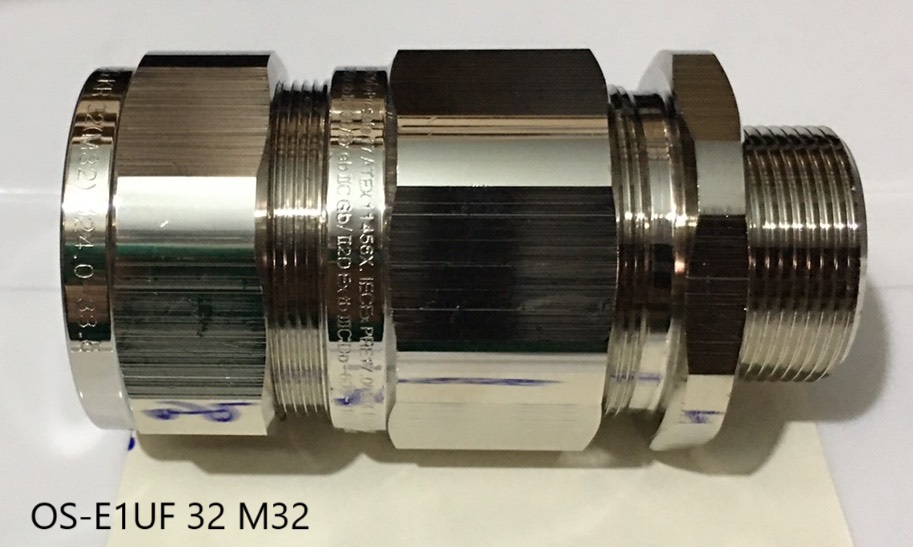

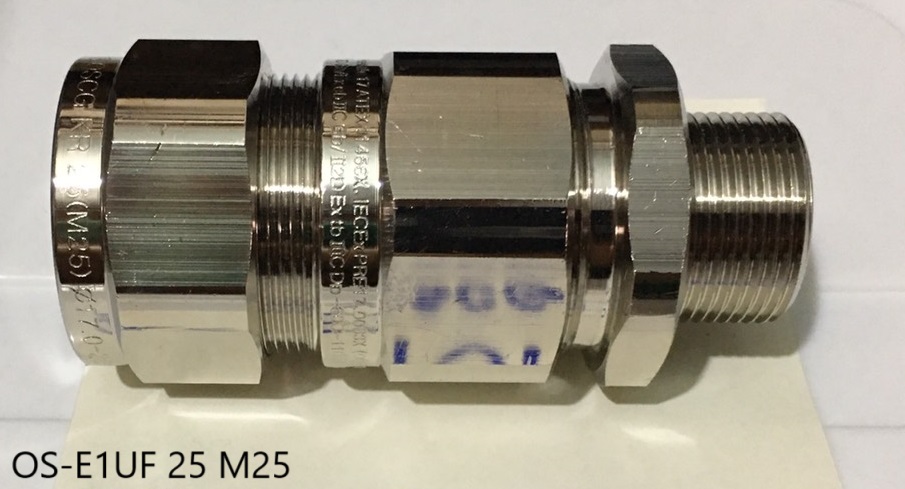

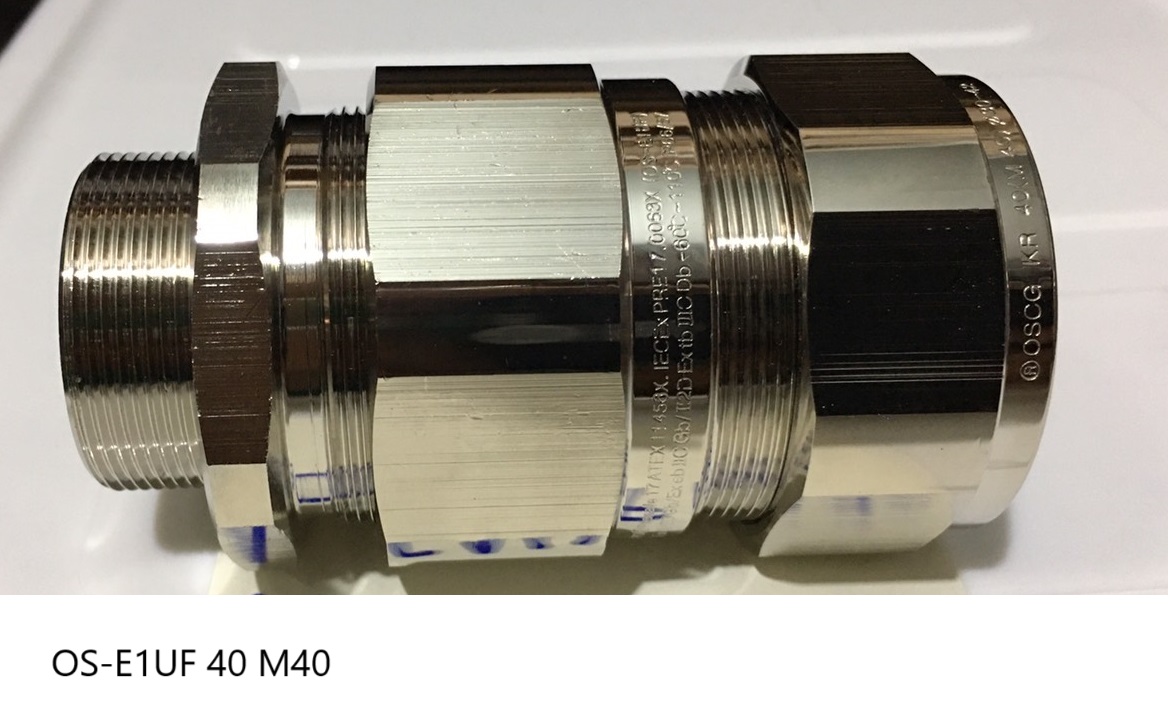

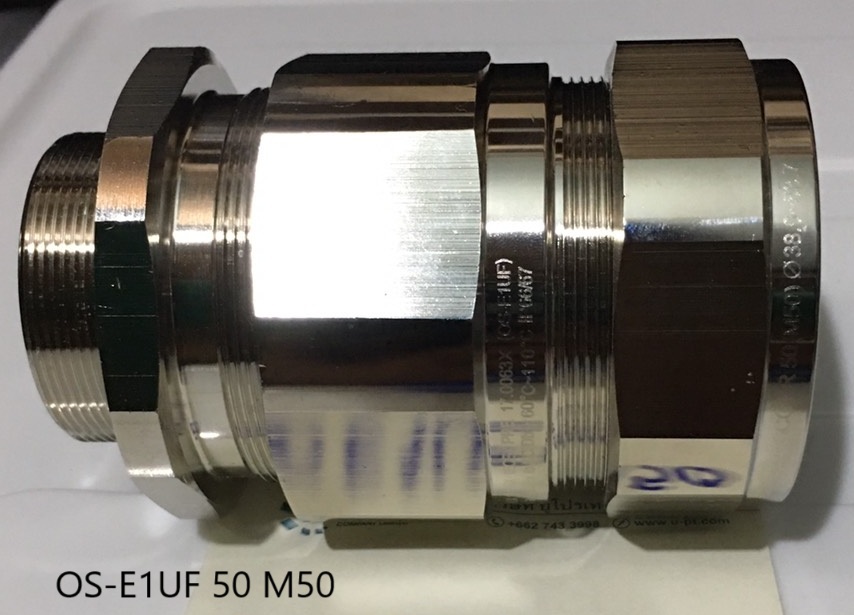

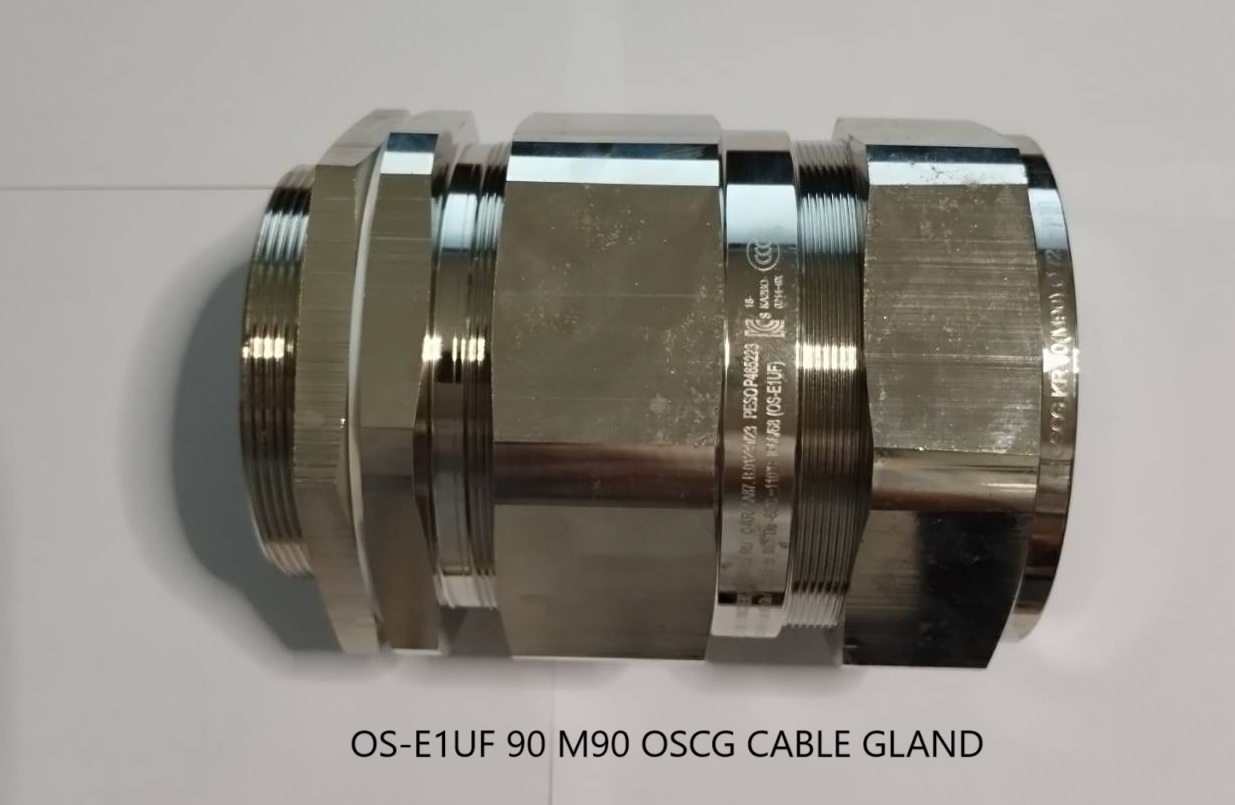

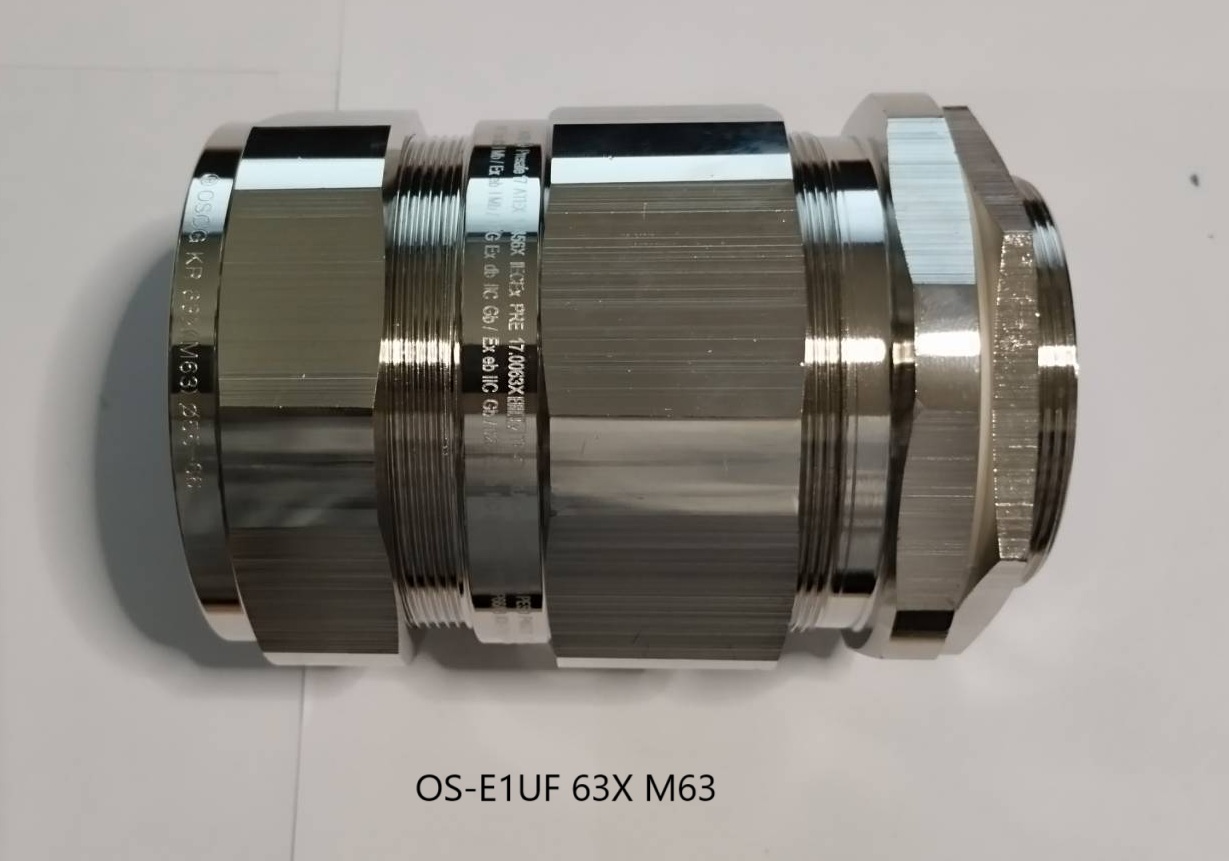

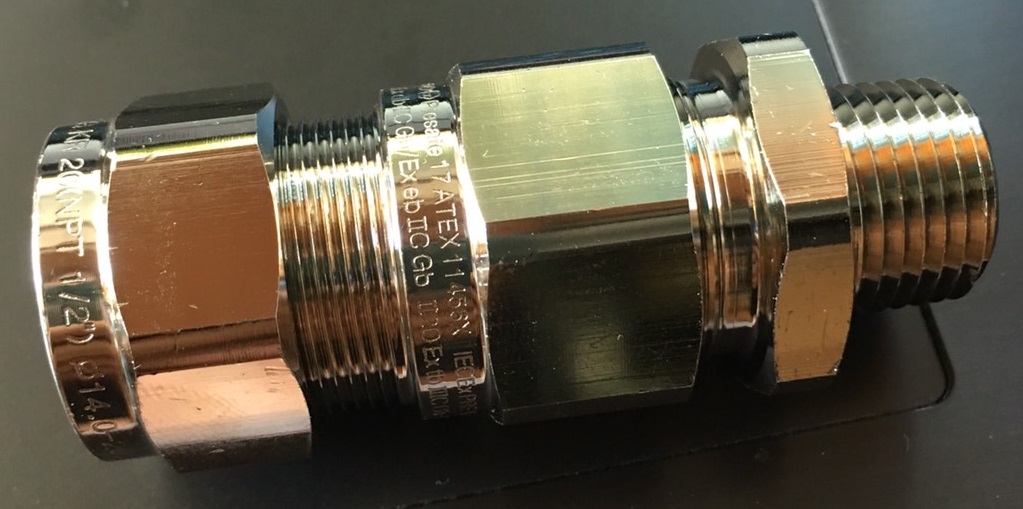

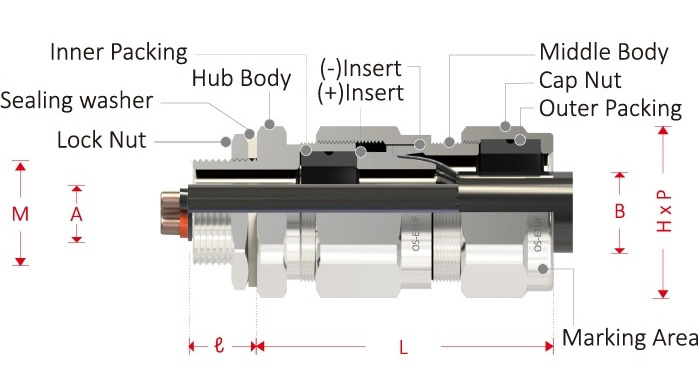

OS-E1UF :
Armoured cable gland for all types of armoured cable |
|
| Part No. | Entry Thread M |
Thread Length 𝓁 |
Cable Dia |
Armour Size |
Hexagon Dia |
Weight |
Length L |
|||||
Metric |
NPT |
Metric |
NPT |
A |
B |
Wire(เส้น) |
Braid(ถัก) |
H |
P |
|||
| OS-E1UF 16 | M16 | 1/2" | 15 |
15 |
5-11.5 | 9-15.5 | 0.9-1.25 | 0.05-0.8 | 25 |
27 |
137 |
56 |
| OS-E1UF 20 | M20 | 1/2" | 15 |
15 |
7.5-15.2 | 14-20.5 | 0.9-1.25 | 0.05-0.8 | 31 |
34 |
212 |
63 |
| OS-E1UF 25 | M25 | 3/4" | 15 |
16 |
13-19.6 | 17-26 | 1.25-1.6 | 0.05-0.8 | 37 |
40 |
325 |
68 |
| OS-E1UF 32 | M32 | 1" | 15 |
18 |
16.5-26.2 | 24-33.5 | 1.6-2.0 | 0.05-1.2 | 47 |
50 |
570 |
75 |
| OS-E1UF 40 | M40 | 1-1/4" | 15 |
19 |
23-32.3 | 30-41.5 | 1.6-2.0 | 0.05-1.2 | 56 |
60 |
876 |
83 |
| OS-E1UF 50 | M50 | 1-1/2" | 15 |
21 |
29-41.5 | 38-50 | 1.8-2.5 | 0.05-1.2 | 70 |
75 |
1445 |
89 |
| OS-E1UF 63 | M63 | 2" | 15 |
24 |
39-50 | 45-60 | 1.8-2.5 | 0.05-1.2 | 77 |
82 |
1740 |
98 |
| OS-E1UF 63X | M63 | 15 |
46-55 | 55-66 | 1.8-2.5 | 0.05-1.2 | 82 |
88 |
1907 |
98 |
||
| OS-E1UF 75 | M75 | 2-1/2" | 20 |
27 |
52-61 | 58-72 | 1.8-2.5 | 0.05-1.2 | 92 |
100 |
3270 |
109 |
| OS-E1UF 75X | M75 | 20 |
59-67 | 66.1-79 | 1.8-2.5 | 0.05-1.2 | 98 |
106 |
2912 |
109 |
||
| OS-E1UF 90 | M90 | 3" | 25 |
30 |
66-80 | 72-90 | 1.8-3.0 | 0.05-1.6 | 110 |
120 |
4600 |
111 |
| OS-E1UF 100 | M100 | 3-1/2" | 25 |
32 |
76-90.5 | 84-101.5 | 1.8-3.0 | 0.05-1.6 | 125 |
135 |
5500 |
123 |
| OS-E1UF 115 | M115 | 4" | 25 |
32 |
88-102 | 100-116 | 1.8-3.0 | 0.05-1.6 | 135 |
143 |
5500 |
123 |
| unit | mm |
mm |
mm | mm | mm | mm | mm |
mm |
g |
mm |
||
| Design Specification: BS 6121, IEC 62444, EN 50262 |
| Compliance Standard: EC/EN 60079-0, 1, 7,31 |
| ATEX Certification: Presafe 17 ATEX 11454X |
| IECEx Certification: IECEx PRE 17.0063X |
| KCs Certification: 18-KA2BO-0212~19X,0236~39X(KOR), 18-KA2BO-0212~19X,0236~39X(ENG) |
| TR CU Certification: RU C-KR.AA87.B.01239/23(ENG) |
| CCC Certification: 2023012313574013 NR TL(UL, CSA) Certification: LR1634-3 |
| Code of Protection: IM2 Ex db I Mb, Ex eb I Mb, II2G Ex db IIC Gb, Ex eb IIC Gb, II2D Ex tb IIIC Db (NEC : AEx eb IIC Gb, AEx tb IIIC Db) |
| Operating Temperature: -60°C ~ 110°C |
| Ambient temperature range(NEC): Ta = -60˚C to +60˚C |
| Regulation: Zone 1,2 & 21,22, Gas Group IIA, IIB, IIC, Dust Group IIIA, IIIB, IIIC NEC : Cl. I, Div. 2, Gr. ABCD, Cl. II, Div 1, Gr. EFG; Cl. III, Div. 1 (Cl. II, Div. 2, Gr. FG - Canada only) |
| Ingress Protection (Metric): IP 66 / 68 (request in advance if IP68 required) |
| Ingress Protection (NPT): NPT tapered hole : IP66, IP68(apply non-hardensing grease) Clearance hole : IP66/68(using IP Washer) |
| Ingress Protection (NEC): TYPE 4X |
| Applicable Cable Specification: All types of armoured cable |
| Gland Material: Nickel plated brass(standard), Brass(only), Stainless steel(316L) |
| Gasket (washer): Nylon(Standard), PTFE-Teflon(Option) |
| Packing: Silicone |
| Accessories (optional): Lock nut, Sealing washer, Earth tag, Shroud, Serrated washer |
