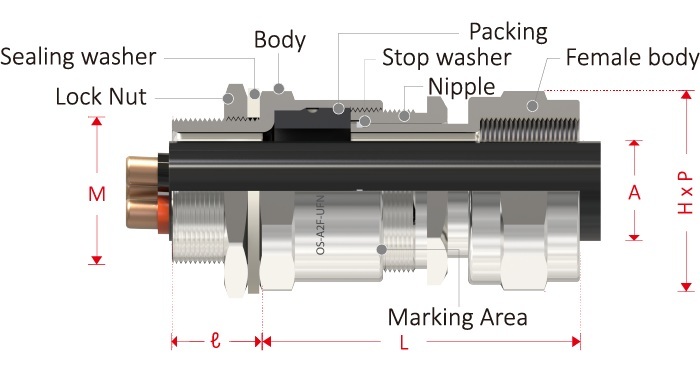

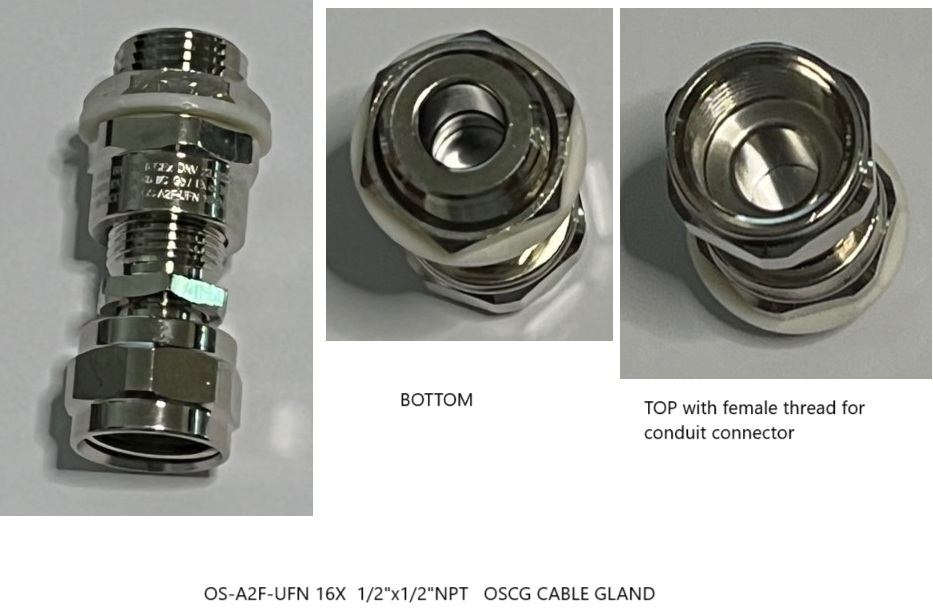

OS-A2F-UF :
use for conduit (need conduit connector) for non-armoured cable and braided cable |
|
| Part No. | Entry Thread M |
Thread Length 𝓁 |
Cable Dia
|
Hexagon Dia |
Weight |
Length L |
|||
Metric |
NPT |
Metric |
NPT |
H |
P |
||||
| OS-A2F-UF16 | M16 | 1/2" | 15 |
15 |
3-7 | 24 |
26 |
79 |
42 |
| OS-A2F-UF16X | M16 | 1/2" | 15 |
15 |
5-10.3 | 24 |
26 |
79 |
42 |
| OS-A2F-UF20 | M20 | 1/2" | 15 |
15 |
9-15.3 | 27 |
29 |
95 |
46 |
| OS-A2F-UF25 | M25 | 3/4" | 15 |
16 |
13-20 | 32 |
34 |
125 |
48 |
| OS-A2F-UF32 | M32 | 1" | 15 |
18 |
17-26.5 | 39 |
41.5 |
195 |
52 |
| OS-A2F-UF40 | M40 | 1-1/4" | 15 |
19 |
22-32 | 48 |
51 |
300 |
55 |
| OS-A2F-UF50 | M50 | 1-1/2" | 15 |
21 |
30-42 | 58 |
62 |
425 |
61 |
| OS-A2F-UF63 | M63 | 2" | 15 |
24 |
39-51 | 73 |
78 |
680 |
64 |
| OS-A2F-UF63X | M63 | 15 |
46-55 | 73 |
78 |
575 |
64 |
||
| OS-A2F-UF75 | M75 | 2-1/2" | 20 |
27 |
54-61 | 85 |
90 |
875 |
69 |
| OS-A2F-UF75X | M75 | 20 |
58-68 | 94 |
99 |
860 |
71 |
||
| OS-A2F-UF90 | M90 | 3" | 25 |
30 |
66-78 | 103 |
109 |
1690 |
77 |
| OS-A2F-UF100 | M100 | 3-1/2" | 25 |
32 |
77-89 | 112 |
120 |
2250 |
84 |
| OS-A2F-UF115 | M115 | 4" | 25 |
32 |
88-101 | 125 |
135 |
2400 |
84 |
| unit | mm |
mm |
mm | mm |
mm |
g |
mm |
||
| Design Specification: BS 6121, IEC 62444, EN 50262 |
| Compliance Standard: IEC/EN 60079-0, 1, 7, 31 |
| ATEX Certification: DNV 23 ATEX 60022X |
| IECEX Certification: IECEx DNV 23.0022X |
| KCS Certification: 25-KA2BO-0186~9X |
| TR CU Certification: RU C-KR.AA87.B.01239/23(ENG) |
| CCC Certification: 2023012313576849 |
| NR TL(UL, CSA) Certification: LR1634-4 |
| Code of Protection: II2G Ex db IIC Gb, Ex eb IIC Gb, II2D Ex tb IIIC Db (NEC : AEx db IIC Gb, AEx eb IIC Gb, AEx tb IIIC Db) |
| Operating Temperature: -60°C ~ 110°C |
| Ambient temperature range(NEC): Ta = -60˚C to +60˚C |
| Regulation: Zone 1,2 & 21,22, Gas Group IIA, IIB, IIC, Dust Group IIIA, IIIB, IIIC NEC : Cl. I, Div. 2, Gr. ABCD, Cl. II, Div 1, Gr. EFG; Cl. III, Div. 1 (Cl. II, Div. 2, Gr. FG - Canada only) |
| Ingress Protection (Metric): IP 66 / 68 (request in advance if IP68 required) |
| Ingress Protection (NPT): NPT tapered hole : IP66, IP68(apply non-hardensing grease) Clearance hole : IP66/68(using IP Washer) |
| Ingress Protection (NEC): TYPE 4X |
| Applicable Cable Specification: Non-armoured cable, Braided armoured cable |
| Gland Material: Nickel plated brass(Standard), Brass(Only), Stainless steel(316L) |
| Gasket (washer): Nylon(Standard), PTFE-Teflon(Option) |
| Packing: Silicone |
| Accessories (optional): Lock nut, Sealing washer, Earth tag, Shroud, Serrated washer |
